THINKCAR Thinkscan Max 2 CAN FD OBD2 Scanner - Full System Diagnostic Tool for Cars, Trucks & SUVs | Read/Reset Check Engine Light, ABS, SRS, Transmission | Perfect for Mechanics & DIY Auto Repair

✅All Systems Diagnostic: Applicable to perform OE-level diagnostics on all systems, such as Engine, ABS, SRS, AT, AFS, LF, DOOR, SAS, EPB, A/C, EES, IMMO, TPMS, Gateway, Steering, Rain, Brake, Fuel, Central Locking, Electric Windows, etc.

✅Added CAN-FD Protocol: THINKCAR Thinkscan Max2 scanner is compatible with CAN-FD protocol and supports GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

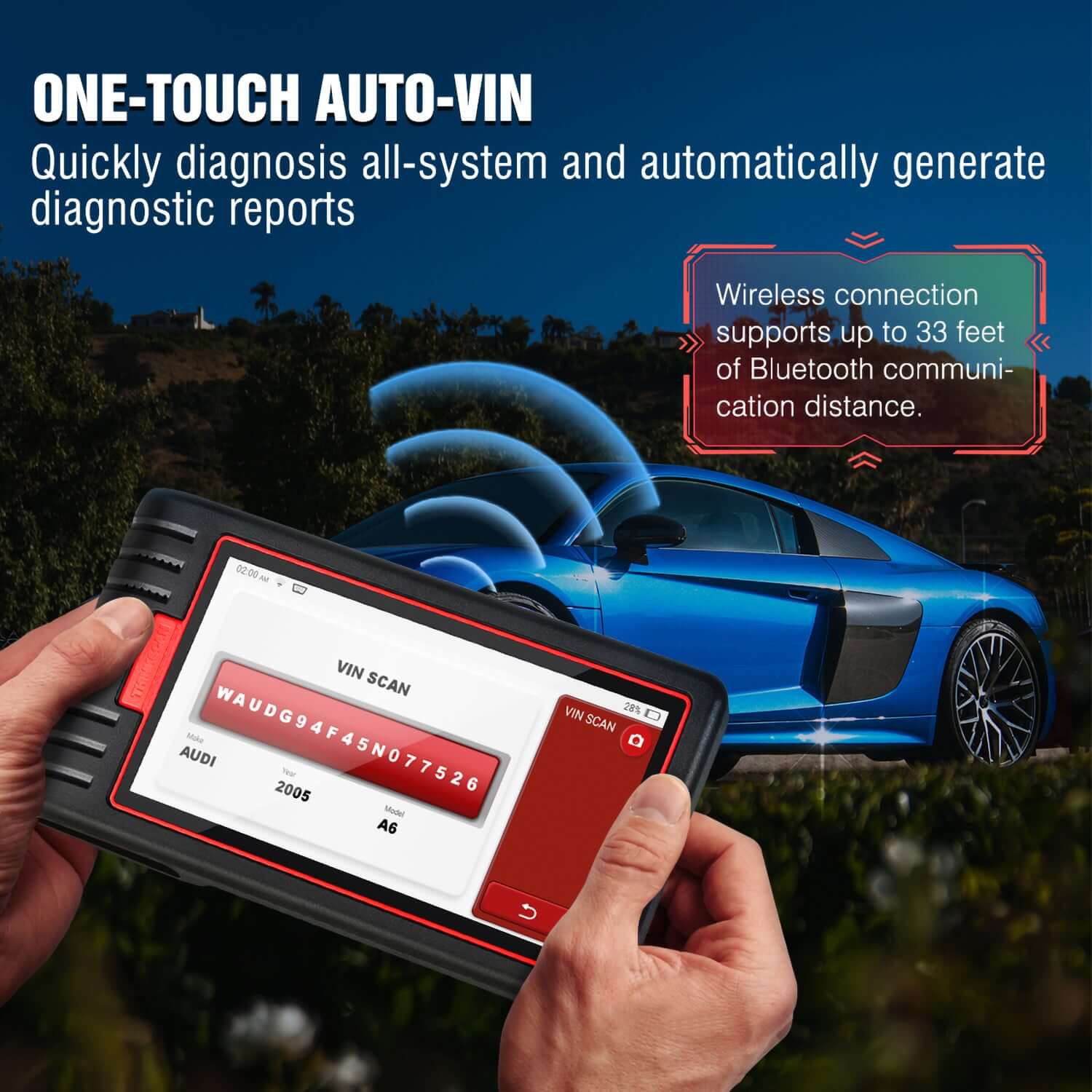

✅Technical Support: Android 10.0 System, 5.99-inch touchscreen, 3150mAh battery, with 3 data stream display modes available, Auto VIN, automatically generates a diagnosis report, DTC Library. You can change it to English, Portuguese, French, Russian, Spanish, Japanese, Korean, German, Traditional Chinese, Hungarian, Polish, Italian, Greek, Arabic, and Slovak.

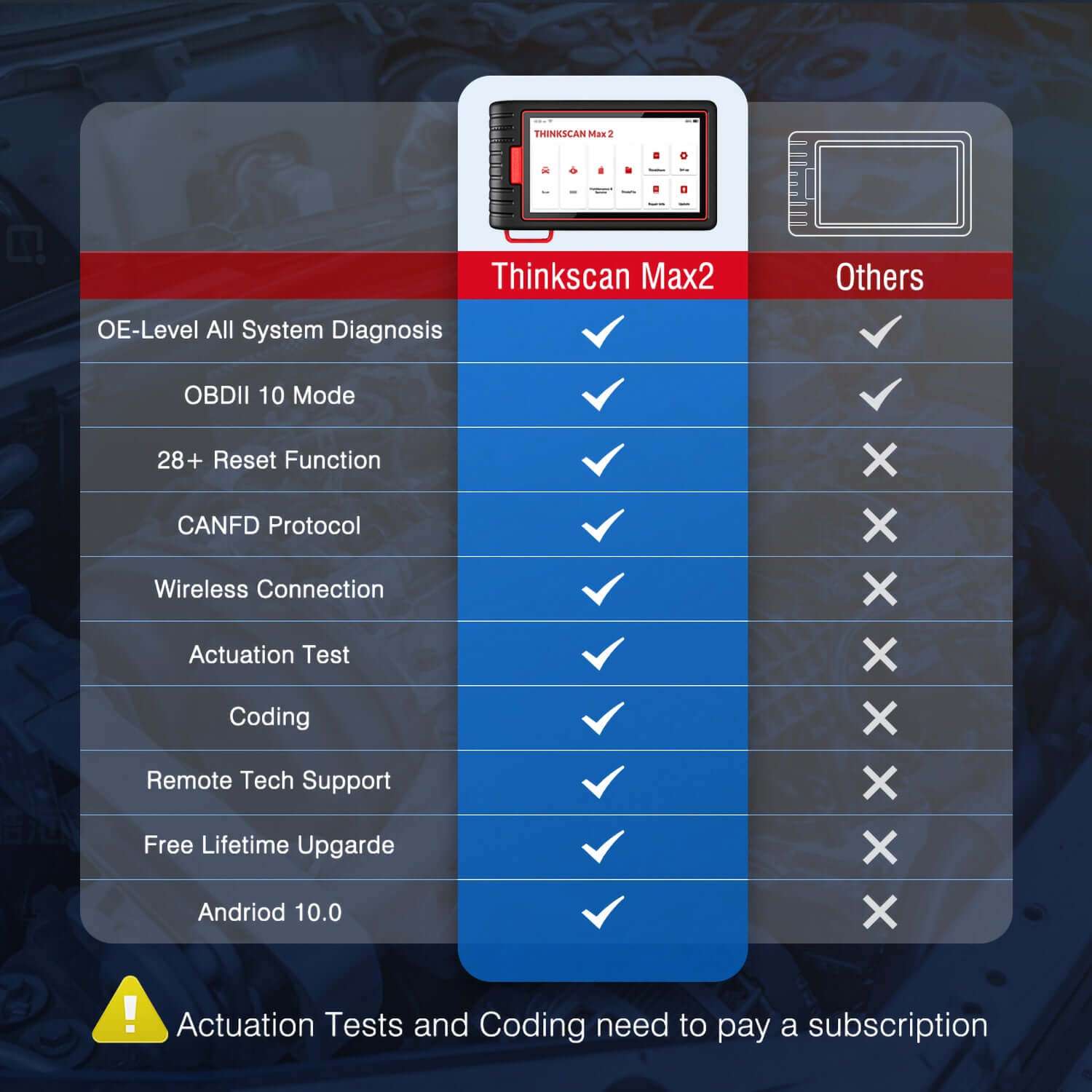

What is the difference between the THINKCAR all system diagnostic scanners?

THINKCAR THINKSCAN Max2 OBD2 scanner meets the following protocols:
-ISO 14230-4 (KWP2000)
-ISO 11898-1:2015(CAN-FD)
-ISO 15765-4 (CAN)
-ISO 9141-2 (ISO)
-ISO 14229 (UDS)
-SAEJ 1850 (VPW & PWM)

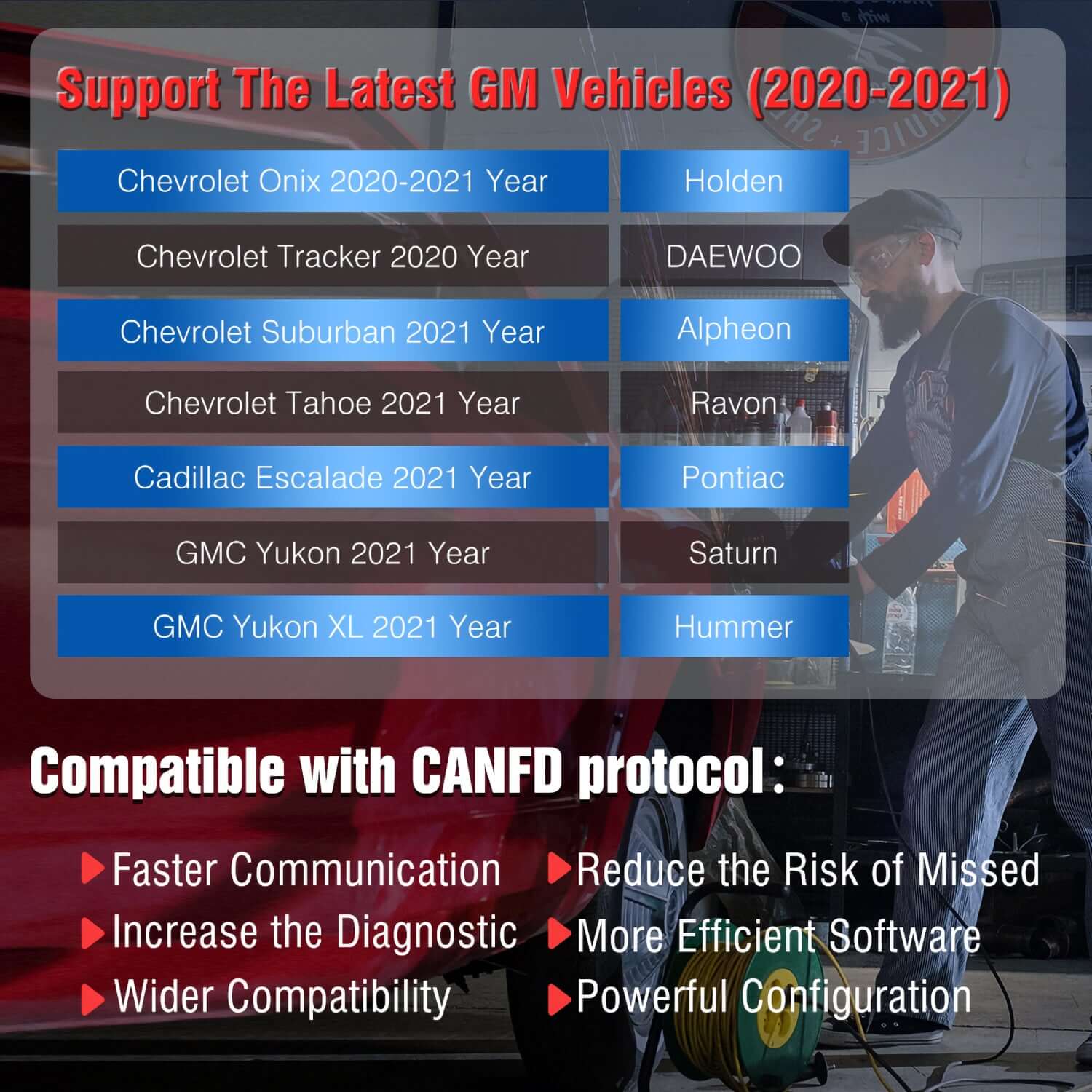

The following vehicle models meet -ISO 11898-1:2015(CAN-FD) protocol:
2021 Chevrolet Tracker/Suburban/Tahoe;
2020-2021 Chevrolet Onix 1.0L(L4F/L4G/LIJ/LIF)/Onix 1.2L(LIF);
2021 Cadillac Escalade/Escalade ESV;
2021 GMC YUKON/YUKON XL;
2020 Chevrolet Tracker

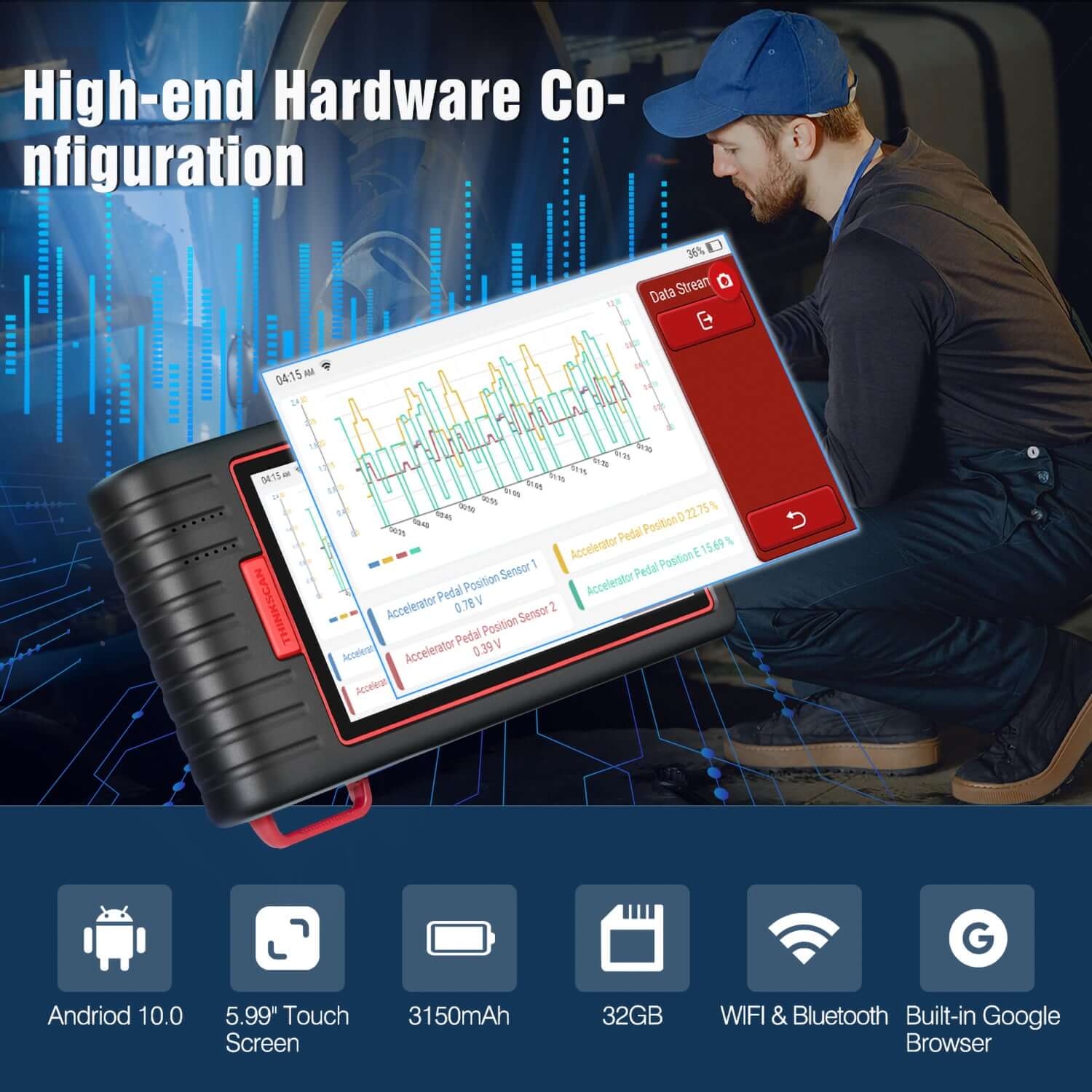

Specification:
Thinkscan Max 2 Host Computer
Screen Size: 5.99”
Operation System: Android 10.0
Battery Capacity: 3150mAh/3.7V
ROM: 2GB
RAM: 32GB
Resolution: 720*1440 Pixel
Working Voltage: 5V
Working Current:≤2.5A
Dimension: 120.5*65*29mm
Working Temperature: -10℃ to 50℃ (14℉ to 122 ℉)
Storage Temperature: -20℃ to 60℃ (-4℉ to 140 ℉)

THINKTOOL VCI:
Working Voltage: 12V
Working Current: ≤60mA
Working Temperature: -10℃ to 50℃ (14℉ to 122 ℉)
Storage Temperature: -20℃ to 60℃ (-4℉ to 140 ℉)
